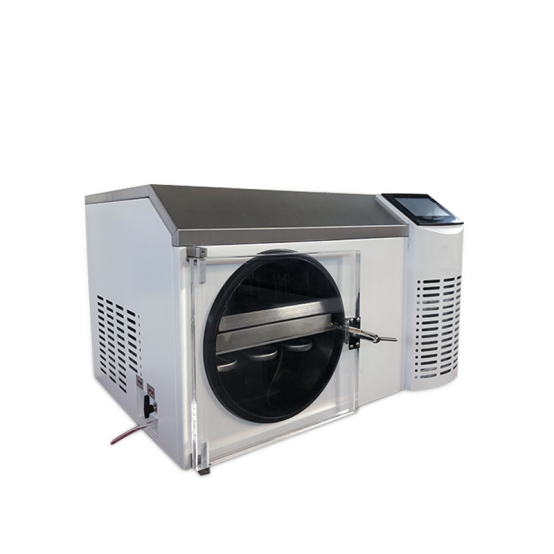

Electric heating table in situ freezing dryer QFN DGJ - 5 fe series
Device name: Electric heating in situ freeze dryer
Equipment type: qfn - dgj - 5fe
Dry area: 0.1 (support for customized)
Test machine: Support test making experiment
Scope of application: Vegetables, fruits, plants, flowers, condiments, aquatic products, biological products, medicines, beverages, specimens, etc.
Application scenario: Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc.
Is it guaranteed? National three year warranty
Telephone: 17317246351
Detail
  • Product features:
  • Pre freeze drying;
  • LCD display, PID control, with freeze-drying curve;
  • Square stainless steel material tray for easy operation and cleaning.
  • The valve can be configured to dry the inert gas at one time.
  • Vacuum seal, LCD panel temperature, cold trap curve;
  • PLC controller supports 20 programs, each program can be divided into 40 sections.
  • The parameters of freeze-drying process can be modified during operation and record the final drying curve.
  • Optional USB online function, export curve data to U disk.
  • It can be equipped with computer remote online function.
  • The manual cover device can be selected.
  • 4 optional freeze-dried dry bottles;
  • Technical parameters:

Model

qfn - dgj - 5fe

type

Desktop general type

Freeze-dried area

Zero point one

Number of pallets

One

Tray temperature

-50℃ to 60℃

Tray size (mm)

280*400mm

cryo-temperature

Less than -50 C (no-load)

Water catching capacity of cold trap

2kg/24h

Tray liquid

1.5l

vacuum degree

< 10pa

Capping device

Manual cap (optional)

Cooling mode

Air cooling, good ventilation, room temperature less than 25 degrees C

Whole machine size (mm)

880*660* 550

Weight

180 pounds

Voltage

60hz 220 v 50 hz / 110v

Power (W)



Bottle branch of Xilin (for reference only)

22: 185 branch

16: 384 branch

14: 485 branch

12: 650.

Heating mode

Electric heating
